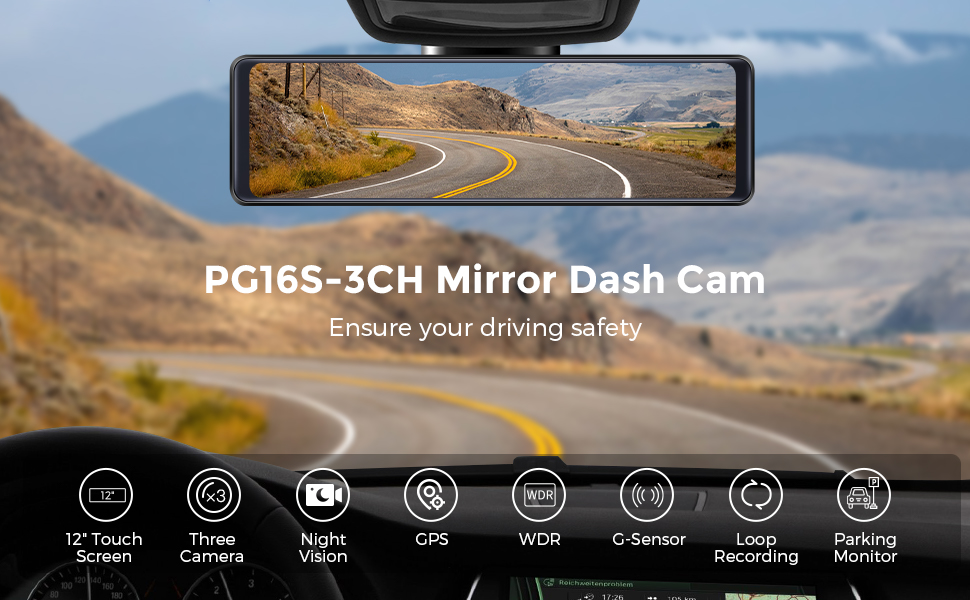

PG16S-3CH
- Functional details
- Parameter
- Video
| Model | PG16S-3CH | |
| Key words | 11.26'' Touch Screen/FHD/3 Channels/GPS | |
| SOLUTION | NT98560+GC4653+GC2053+GC2093 | |
| CPU | NT98560 | |
| SENSOR | Sensor name | GC4653 |
| Sensor native resolution | 4MP | |
| SCREEN | Screen size | 11.26'' Touch Screen |
| LENS | Lens type and layers | 2G4PIR |
| Real angle of view(front) | D=135.2° H=97.4° V=69.6° | |
| Real angle of view(cabin) | D=142.2° H=112.6° V=57.6° | |
| Real angle of view(rear) | D=138° H=119° V=61.6° | |
| Aperture | F/NO=2.0 | |
| Focal length | f=3.35mm | |
| VIDEO | Supported video resolution | 3CH: 1080P + 1080P +1080P |
| Video format | MP4 | |
| Compression | H.264 | |
| PHOTO | Picture format | JPG |
| Supported photo resolution | 8M | |
| Charger | Charger Interface | Type-C |
| BATTERY | Charger Interface | yes |
| G-sensor | yes | |
| Parking Mode | yes, should work with hardwire kits | |
| Time Lapse | yes | |
| GPS | yes, external GPS | |
| WiFi | No | |
| APP | AZDOME | |
| GPS tracking | yes,via APP | |
| Max ext.storage capacity (TF-card) | 128G | |
| SIZE | Size | 281.7*73.6*43.2mm(including lens) |
